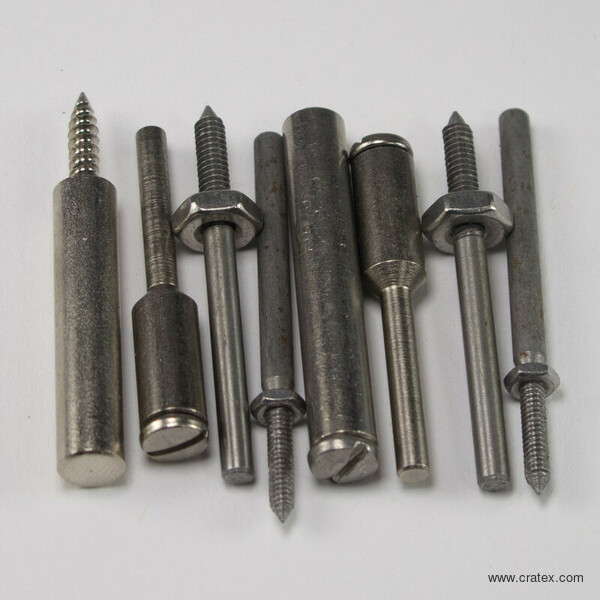

Cratex Mandrels (Pack of 10)
Cratex Mandrels are well built and made to last. They come in packages of 10.
From the brochure:
CRATEX Small Wheel Mandrels
Part No. | Shank | For Hole |
---|---|---|
2 | 3/32" | 1/16" |
3 | 1/8" | 1/16" |
5 | 1/8" | 1/8" |
8 | 1/4" | 1/8" |
Maximum Safe Speed 25,000 Revolutions Per Minute with 1/2" overhang or less (exposed mandrel length). For each additional 1/4" of overhang the Maximum Safe Speed is decreased by at least 20%.
CRATEX Point Mandrels
Part No. | Shank | For Hole | For Point Nos. |
---|---|---|---|
1 | 3/32" | 1/16" | 4, 6, 8, 10 |
4 | 1/8" | 1/16" | 4, 6, 8, 10 |
6 | 1/8" | 1/8" | 11, 12, 14, 15 |
9 | 1/4" | 1/8" | 11, 12, 14, 15 |
- Mandrels No. 1 and No. 4 have a No. 3-48 thread and a hex nut flange
- Mandrel No. 6 has a No. 5-40 thread and a hex nut flange.
- Mandrel No. 9 has a No. 5 screw thread, and a fixed schoulder flange.
Maximum Safe Speed 25,000 Revolutions Per Minute with 1/2" overhang or less (exposed mandrel length). For each additional 1/4" of overhang the Maximum Safe Speed is decreased by at least 20%.
CRATEX Cone Mandrel - Part No. 1341
Cratex Rubberized Abrasive Cones are designed to fit Cratex Cone Mandrel No. 1341, 1/4" Shank. Best results are usually obtained at 30% to 80% of Maximum Safe Speed. Use a light work pressure.
Maximum Safe Speed 25,000 Revolutions Per Minute with 1/2" overhang or less (exposed mandrel length). For each additional 1/4" of overhang the Maximum Safe Speed is decreased by at least 20%.
CRATEX Wheel Mandrel - Part No. 1342
Cratex Wheel Mandrel No. 1342 has a 1/4" Shank and is designed for 1/4" center hole wheels up to 3" diameter by 1/2" thick or less.
Maximum Safe Speeds based on 1/2" overhang and 5,500 Surface Feet Per minute are:
- 1-1/2" diameter - 15,000
- 2" diameter - 10,500
- 2-1/2" diameter - 8,300
- 3" diameter - 7,000
The Maximum Safe Speeds listed above are for 1/2" overhang or less (exposed mandrel length). For each additional 1/4" of overhang the Maximum Safe Speed is decreased by at least 20%.
